Assignment #4

Resistor 1 = 5.5V
Resistor 2 = 5.5V
Resistor 3 = 5.5V
Resistor 4 = 5.5V

There is no correlation between the voltage and the brightness of the LED.

Assignment #3

Series
Source: 0.0053A
R1: 0.0053A
R2: 0.0053A
R2: 0.0053A

All of the currents through each resistor are the same.

Paralell
Source: 0.00729A
R1: 0.00549A
R2: 0.00119A
R3: 0.0061A

The sum of the currents through the resistors is equal to the current from the source.

Assignment #2

Source Voltage = 8.31v
R1 Voltage = 0.49v
R2 Voltage = 2.31v
R3 Voltage = 4.83v
Diode Voltage = 0.65v

Robotics Assignment 1

Source voltage: 7.94V
Diode voltage: 0.77V
Resistor voltage: 4.94V
LED voltage: 2.06V

Sum of voltages = 7.77

The values in step 1 and step 3 are the same because voltage in series circuits add.

Series vs Parallel Circuits

Series: In a series circuit, the components are connected one after another. This makes the current be the same across all components and the voltage across the circuit is the sum of the voltages across each component.

     Advantages: Additional power sources can be easily added to gain more power.

     Disadvantages: You are unable to control each component individually. Every component has to be powered even if you only want to use one of them.

     If one of the components fails, all components after it will not be powered. This is commonly seen in Christmas lights.


Parallel: In a Parallel circuit, each of the components are separated from each of the others. This makes the voltage across each component be equal to the voltage across the circuit. The current across the circuit is the sum of the current across each component

     Advantages: Components can be controlled individually.

     If one component fails, all others will still work.

     Disadvantages: Has a higher risk of fire.

     Adding more power sources will not increase the voltage delivered.

Differences Between AC and DC

AC, or Alternating Current rapidly changes the direction in which the current is flowing. Sometimes the current is flowing forwards, and sometimes backwards. This changes many times a second. This was invented by Nikola Tesla

DC, or Direct Current only flows in one constant direction. This was invented by Thomas Edison

Alternating Current is what is delivered through the power outlets in our houses. It is more commonly used because it has better power transmission. Some electronics, however, require the use of Direct Current. One common example of this is our computers. The power supply in the computer converts the AC electricity from the wall into DC electricity that the computer components require.

Common Symbols

Transistors

Diodes


Integrated Circuits Resistor

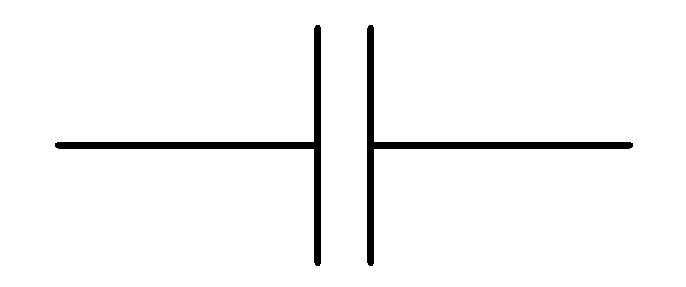

Capacitors

Inductors

Switch

Wire

Source

Terminals

Fuses/Circuit Breaker
